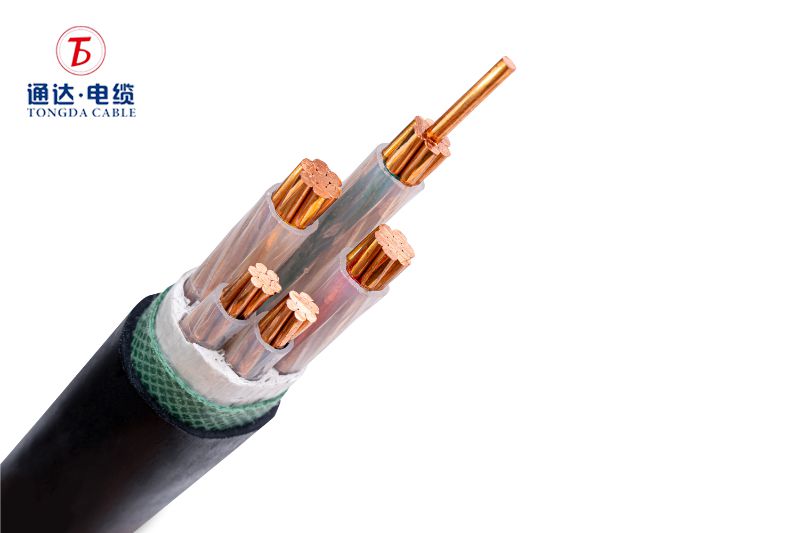

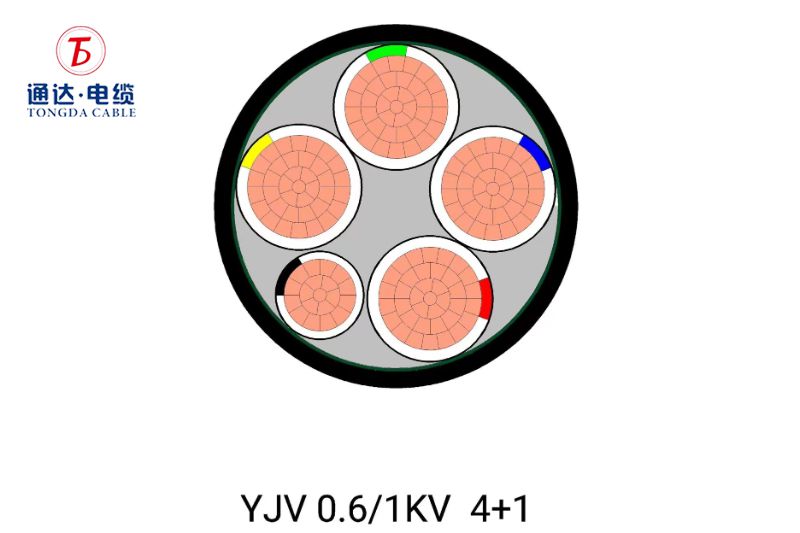

XLPE insulated and PVC sheated power cable (YJV)

XLPE insulated and PVC sheated power cable (YJV)

Application: Used in power networks, underground, outdoor and indoor application and for use in cable ducting.

Voltage Rating: 0.6KV/1KV

Temperature Rating: -15℃to+90℃

Standard: IEC 60502

Insulation Color: Natural or upon request of client

Inquire Now

Download

Product Parameter

No.of Core	Size	Approx.OD of cable	Approx.Weight of Cable
No.of Core	mm²	mm	kg/km
1	2.5	6.8	67
	4	7.3	94
	6	7.8	128
	10	9.1	176
	16	10.1	244
	25	11.8	362
	35	13.0	468
	50	14.5	643
	70	16.5	863
	95	19	1135
	120	21	1415
	150	23	1733
	185	25	2102
	240	28	2700
	300	31	3350
	400	35	4400
	500	39	5480
	630	43	6720
2	2.5	12	136
	4	13	176
	6	14	242
	10	17	362
	16	19	514
	25	22	707
	35	25	911
	50	28	1208
	70	32	1621
	95	36	2156
	120	40	2660
	150	44	3310
	185	50	4074
3	2.5	13	172
	4	14	228
	6	15	315
	10	18	484
	16	20	723
	25	24	1019
	35	26	1320
	50	30	1755
	70	35	2365
	95	39	3166
	120	43	3926
	150	48	4890
	185	53	6027
	240	60	7746
	300	66	9546
4	2.5	13	260
	4	14	300
	6	15	387
	10	18	605
	16	21	894
	25	25	1333
	35	28	1730
	50	32	2314
	70	37	3123
	95	42	4177
	120	47	5183
	150	52	6474
	185	58	7968
5	2.5	14	314
	4	16	438
	6	17	560
	10	20	799
	16	23	1182
	25	26	1698
	35	30	2259
	50	35	3158
	70	40	4236
	95	43	5685
	120	50	7662
