Mineral Insulated Cable

Copper Core Mineral Insulated (Flexible) Fireproof Cable
Copper Core Mineral Insulated (Flexible) Fireproof Cable
Copper Core Mineral Insulated (Flexible) Fireproof Cable
Copper Core Mineral Insulated (Flexible) Fireproof Cable
Copper Core Mineral Insulated (Flexible) Fireproof Cable
Copper Core Mineral Insulated (Flexible) Fireproof Cable

Copper Core Mineral Insulated (Flexible) Fireproof Cable

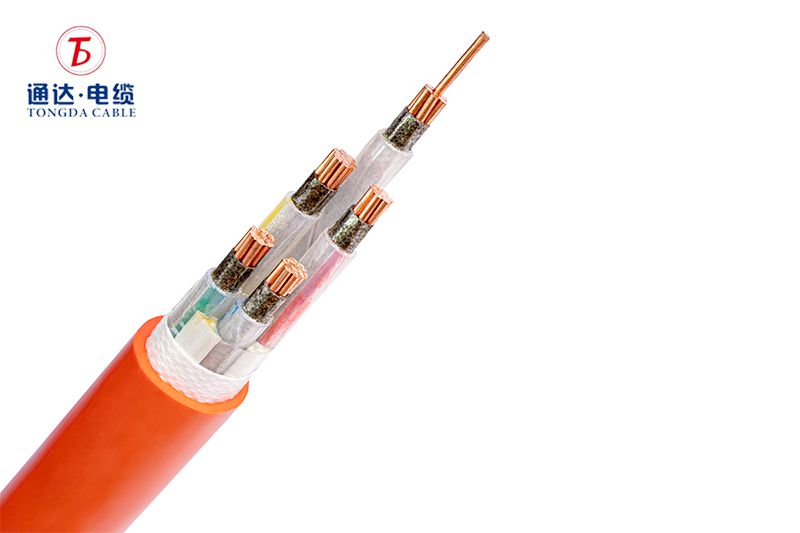

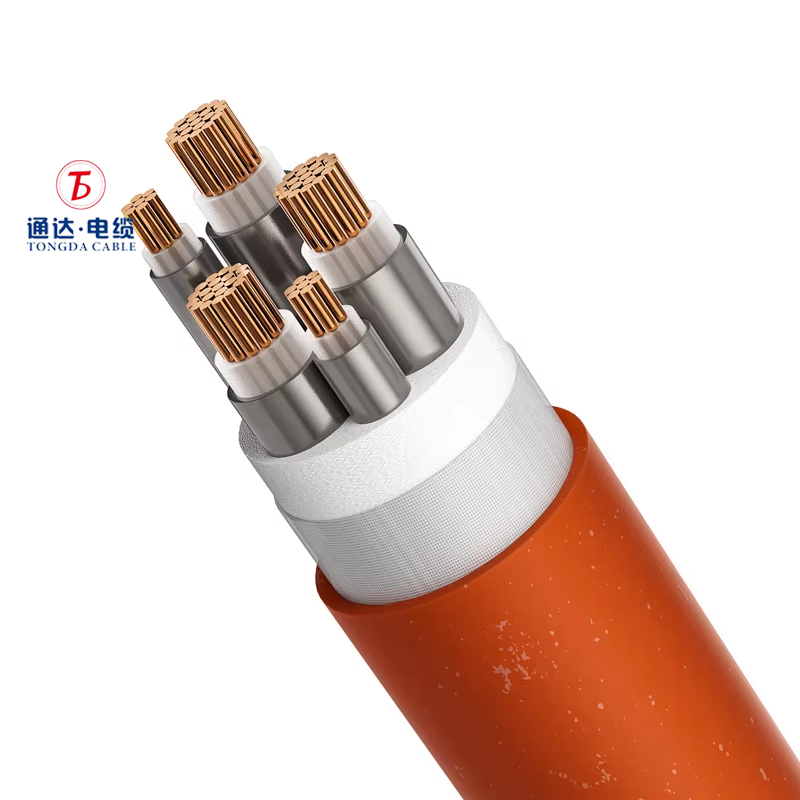

Flexible mineral insulated fireproof cable is composed of copper stranded wire, mineral compound insulation, and mineral compound sheath. This kind of cable is non-combustible, smoke-free, non-toxic and fireproof.

Inquire Now
Download
DetailsDetails

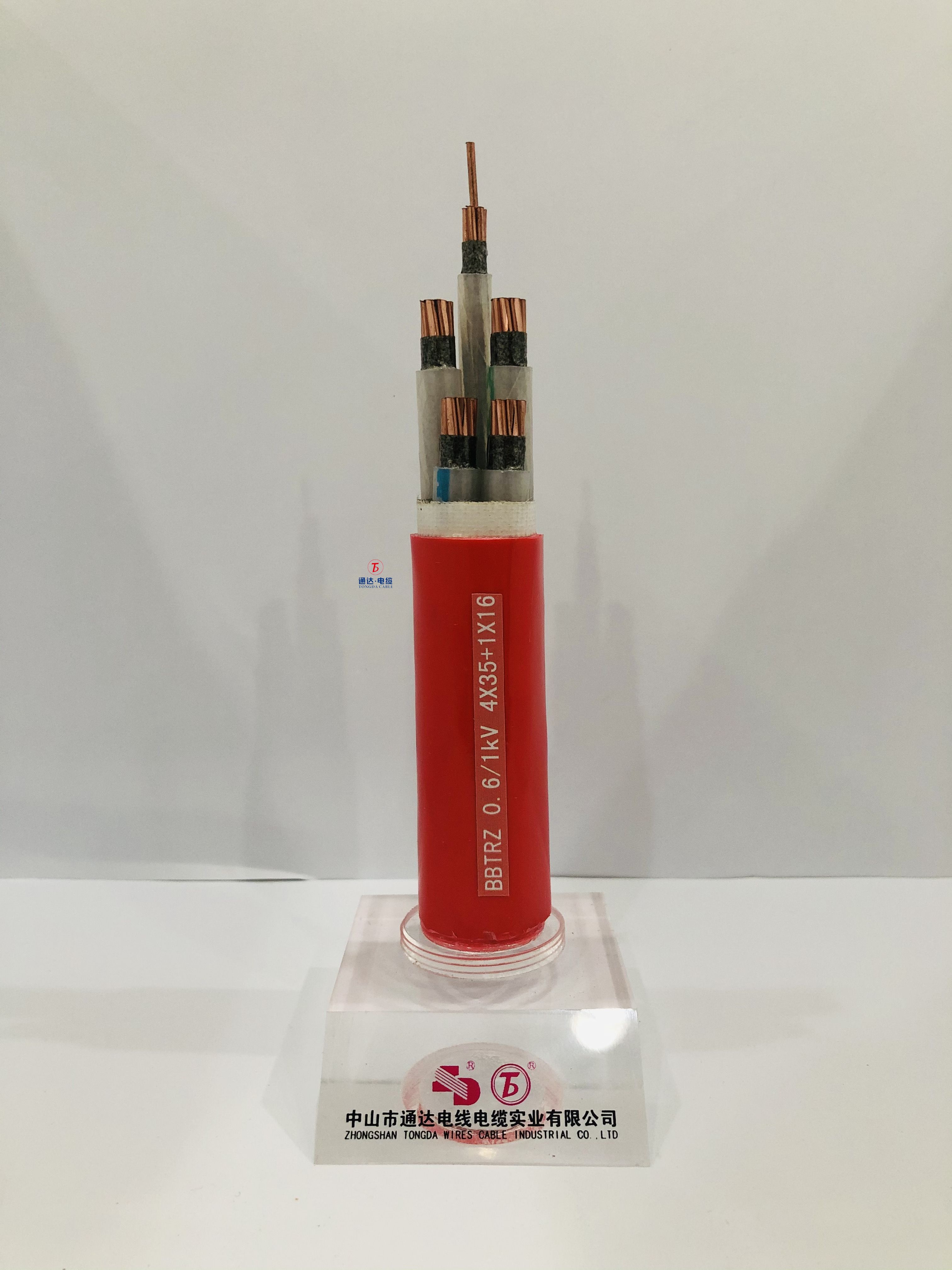

Flexible mineral insulated fireproof cable is composed of copper stranded wire, mineral compound insulation, and mineral compound sheath. This kind of cable is non-combustible, smoke-free, non-toxic and fireproof. Flexibility the process structure of mineral insulated fireproof electrical system (BBTRZ) products is exactly the same as that of traditional cables, which has successfully solved the many shortcomings of the products determined by the production process of magnesium oxide copper rod mineral insulated cable (BTTZ). The coming of BBTRz has become a milestone in the history of the development of fire protection electricity.


At the same time, it has also accelerated the process of China's cable technology research and development level and international integration. Flexible minerals the structure of the insulated cable adopts a flexible structure and the materials are all made of mineral compounds, which makes up for the defects of hard structure, easy to burn, toxic and so on. It also has some advantages that other cables cannot have, such as fire resistance, large carrying capacity, impact voltage resistance, mechanical damage resistance, halogen-free and non-toxic, explosion-proof, waterproof, corrosion resistance, It has the characteristics of long service life, safety, overload resistance, high temperature resistance, low cost and so on.

ItemContents
ApplicationWidely used in urban power grids, mines, chemical plants, etc.
Voltage Rating0.6KV/1KV
Temperature Rating﹣10℃to﹢250℃
Conductor MaterialCopper
Insulation MaterialInorganic mica and mineral insulating materials
SheathLSZH (Low Smoke Zero Halogen)
Brand NameTongDa
Place of   OriginGuangdong, China


Get in Touch
If you cannot find a suitable product, please leave a message or contact us. We have a dedicated technical team to serve you.
FAQ
Q: What are the registered capital and paid-in capital of the company respectively?
A: The registered capital of the company is RMB 150 million and the paid-in capital is RMB 20 million
Q: What is the production capacity of the company?
A: The company has more than 300 sets of production, measurement, monitoring and inspection equipment with leading technology at home and abroad, and the annual production capacity can reach 1 billion yuan. The total investment of the company is 300 million yuan, the fixed assets are 250 million yuan, and the newly built modern factory covers an area of 80,000 square meters.
Q: What are the company's achievements in intellectual property?
A: The company continues to carry out technological innovation, and has obtained a number of utility model patents, such as a magnesium hydroxide fire mud extruder, cantilever tension tape machine, etc.
Q: What are the main business models of the company?
A: The company's business model includes production and processing, distribution and wholesale, investment agents, etc. .
Q: What products does the company mainly produce?
A: Zhongshan Tongda Wire and Cable Industrial Co., Ltd. mainly produces wire, cable, hardware and plastic products, the products cover more than 70 varieties and more than 3,000 kinds of specifications, including power cables, control cables, communication cables, special cables and other fields.
