Mineral Insulated Cable

Flexible Corrugated Copper Sheathed Mica Tape Mineral Insulated Cable
Flexible Corrugated Copper Sheathed Mica Tape Mineral Insulated Cable
Flexible Corrugated Copper Sheathed Mica Tape Mineral Insulated Cable
Flexible Corrugated Copper Sheathed Mica Tape Mineral Insulated Cable
Flexible Corrugated Copper Sheathed Mica Tape Mineral Insulated Cable
Flexible Corrugated Copper Sheathed Mica Tape Mineral Insulated Cable

Flexible Corrugated Copper Sheathed Mica Tape Mineral Insulated Cable

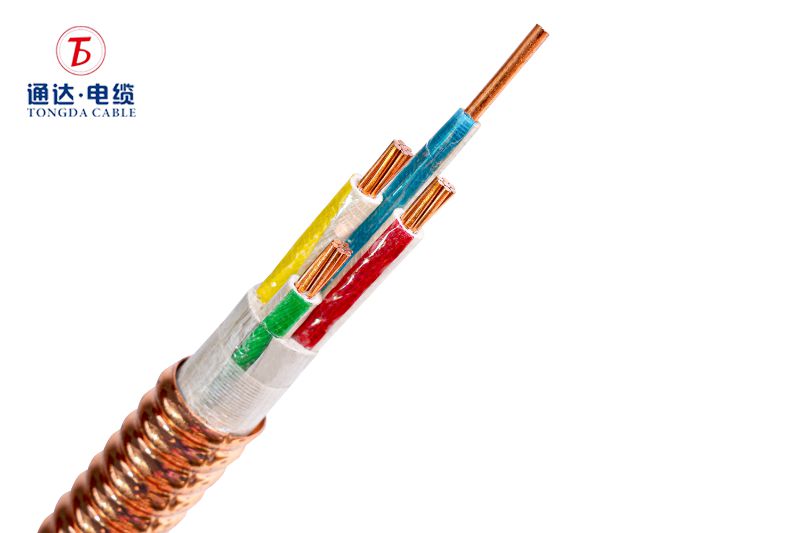

Tongda flexible corrugated copper sheathed mica tape mineral insulated cable is a new type of metal sheathed inorganic mineral insulated flexible fireproof cable. It adopts advanced production technology to achieve fully automated mechanized production. The product quality is reliable and complies with the industry standard JG/T313-2011 "Rated voltage 750V and below metal sheathed inorganic mineral insulated flexible fireproof cable and terminal", and is highly recommended by the China Building Standard Design Institute.

Inquire Now
Download
Flexible Mineral Insulated CableFlexible Mineral Insulated Cable

Description

Tongda flexible corrugated copper sheathed mica tape mineral insulated cable is a new type of metal sheathed inorganic mineral insulated flexible fireproof cable. It adopts advanced production technology to achieve fully automated mechanized production. The product quality is reliable and complies with the industry standard JG/T313-2011 "Rated voltage 750V and below metal sheathed inorganic mineral insulated flexible fireproof cable and terminal", and is highly recommended by the China Building Standard Design Institute.

The cable has excellent fire resistance, high flexibility, high temperature resistance, corrosion resistance and other characteristics. It is suitable for laying power transmission and distribution lines in important places such as tunnels, cable trenches, bridges, trough boxes, shafts, high-rise buildings, rail transit, hospitals, shopping malls, exhibition halls, garages, entertainment venues, data centers, etc.


Specifications

ItemContents
Applicationlaid in power transmission and distribution lines in tunnels, cable trenches,  bridges, trough boxes, shafts, high-rise buildings, rail transit, hospitals, shopping malls, exhibition halls, garages, entertainment venues, data centers and other important places.
Voltage Rating0.6KV/1KV
Temperature Rating﹣10℃to﹢250℃
Conductor MaterialCopper
Insulation MaterialInorganic mica and mineral insulating materials
Metal sleeveCopper soft sheath
SheathLSZH (Low Smoke Zero Halogen)
StandardGB/T 34926-2017
Brand NameTongDa
Place of OriginGuangdong, China


Features

Super strong fireproof performance: Inorganic mineral insulation + mica tape structure, meets the fire resistance of 950°C/180min (higher standards can be customized), ensuring continuous power supply in the event of a fire.

Flexible corrugated copper sheath: High flexibility design, easy to bend and lay, adapt to complex construction environments.

High temperature & corrosion resistance: Long-term working temperature can reach 250°C, copper sheath is corrosion-resistant, suitable for humid and chemically corrosive environments.

Fully automated production: Advanced technology ensures product consistency and stable and reliable performance.

Industry certification: Complies with JG/T313-2011 standards, recommended by national institutions, and quality guaranteed.


Applications

Public buildings: hospitals, shopping malls, exhibition halls, data centers (to ensure emergency power supply in case of fire)

Transportation facilities: subways, tunnels, bridges, airports (vibration-resistant and mechanically resistant)

Industrial fields: chemical plants, nuclear power plants (high temperature resistant and corrosion-resistant)

High-rise buildings: office buildings, hotels (places with strict fire safety requirements)


Why choose Tongda flexible mineral insulated cables?

Safe and reliable: Inorganic mineral insulation is non-flammable, has no toxic smoke, and complies with international fire protection standards (such as BS 6387, IEC 60331).

Convenient construction: Flexible design reduces installation difficulty and saves labor costs.

Long life: Copper sheath + mineral insulation structure, service life exceeds 40 years.


Get in Touch
If you cannot find a suitable product, please leave a message or contact us. We have a dedicated technical team to serve you.
FAQ
Q: Does the company provide customized services?
A: Yes, the company provides wire and cable customization services, according to customer needs for special specifications of production.
Q: What are the main business models of the company?
A: The company's business model includes production and processing, distribution and wholesale, investment agents, etc. .
Q: What are the company's achievements in intellectual property?
A: The company continues to carry out technological innovation, and has obtained a number of utility model patents, such as a magnesium hydroxide fire mud extruder, cantilever tension tape machine, etc.
Q: What are the registered capital and paid-in capital of the company respectively?
A: The registered capital of the company is RMB 150 million and the paid-in capital is RMB 20 million
