Choosing the right wire or cable is crucial for ensuring the safety, reliability, and efficiency of your electrical systems. Whether you're wiring a new home, setting up an industrial machine, or undertaking a DIY project, selecting the appropriate wire or cable can make all the difference. With a variety of options available, understanding the key factors will help you make an informed decision. This guide will walk you through the essential considerations when choosing the right wire or cable for your specific needs.
The first step in selecting the right wire or cable is understanding the specific type required for your application. Wires and cables come in various forms, each designed to meet different needs:
Single-Core Wires: These wires consist of a single conductor, typically made of copper or aluminum. They are used for simple, low-power applications and are easy to install in small spaces.
Multi-Core Cables: These cables contain multiple conductors, each insulated separately. They are commonly used for more complex systems that require multiple connections, such as in control panels, data transmission, or multi-phase electrical systems.
Coaxial Cables: Used primarily for transmitting data, video, and audio signals, coaxial cables have an inner conductor, an insulating layer, a metallic shield, and an outer insulating layer to reduce signal interference.
Power Cables: These cables are designed to carry higher voltages and are used in heavy-duty electrical installations, such as in industrial machinery, transformers, and power distribution networks.
Make sure to choose the wire or cable type that fits the power requirements, complexity, and environment of your specific project.

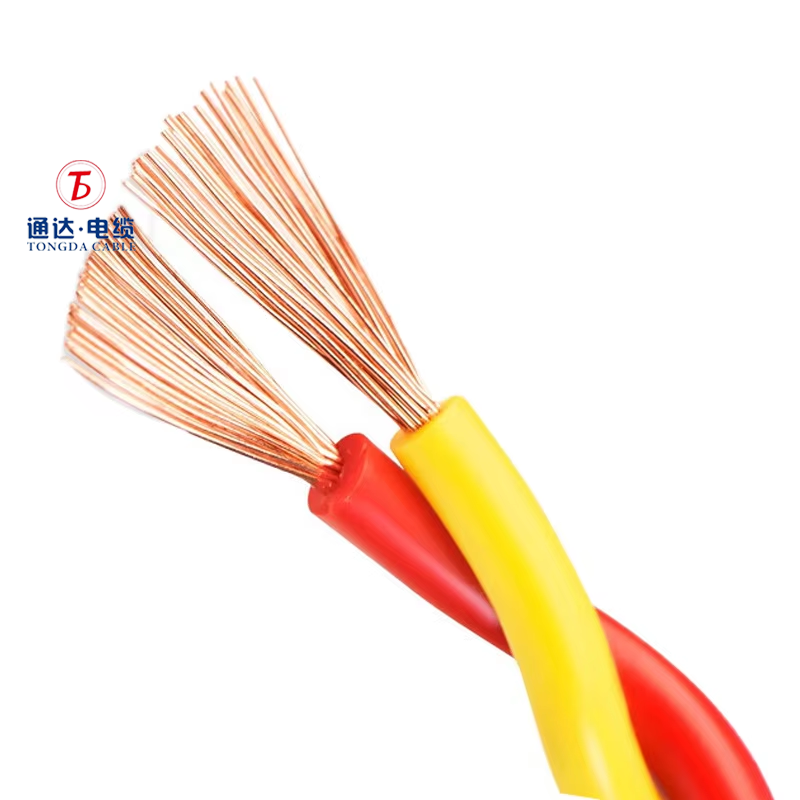

PVC Insulated Twisted Flexible Cable
The voltage rating of a wire or cable indicates the maximum voltage the conductor can safely carry without the risk of insulation breakdown or electrical shock. It's critical to choose a wire or cable with a voltage rating that meets or exceeds the voltage requirements of your system. For example:
Low Voltage: Used for household wiring, lighting, and appliances, typically rated for 300V to 750V.
Medium Voltage: Used for industrial applications or outdoor systems, typically rated between 1kV and 35kV.
High Voltage: Used for power transmission and heavy-duty industrial systems, typically rated for voltages over 35kV.
Ensure that the wire or cable you select is rated for the voltage of your circuit. Overvoltage can lead to insulation damage, short circuits, or even fires.
The wire gauge, or thickness, of a wire is an essential factor in determining its current-carrying capacity. The gauge of the wire (often referred to as "AWG" in the U.S. or "mm²" in other countries) indicates the size of the conductor. Smaller gauge numbers (e.g., 14 AWG or 2.5 mm²) correspond to thicker wires that can carry more current, while larger gauge numbers (e.g., 22 AWG or 0.5 mm²) represent thinner wires with lower current capacity.
For Household Wiring: Common gauges include 12 AWG or 14 AWG for circuits like lighting and outlets.
For Heavy-Duty Applications: Larger gauges like 6 AWG or 10 AWG are used for appliances, air conditioning units, and high-power equipment.
Choosing the correct gauge is critical for preventing overheating and ensuring that your electrical system operates safely. A wire that is too thin for the current can overheat, causing damage or fires.
The insulation material of a wire or cable is essential for protecting the conductor from external elements, ensuring safety, and preventing electrical faults. The choice of insulation depends on the application and environment in which the wire will be used. Common insulation materials include:
PVC (Polyvinyl Chloride): A versatile and cost-effective insulation material used for general-purpose wiring in both residential and commercial applications.
XLPE (Cross-linked Polyethylene): Used for medium and high-voltage cables, XLPE offers excellent resistance to heat, chemicals, and mechanical stress.
Rubber: Often used in flexible cables, rubber insulation offers high flexibility and is suitable for environments where the wire will be subjected to bending or movement.
PTFE (Polytetrafluoroethylene): Commonly used for high-temperature environments, PTFE is resistant to heat and chemical exposure.
Ensure that the insulation material matches the environmental conditions and temperature range of your application to provide adequate protection and longevity.
Consider the environmental conditions the wire or cable will be exposed to. Some wires are designed to withstand extreme temperatures, UV exposure, moisture, or chemical contact. For example:
Outdoor Use: For outdoor installations, choose cables that are UV-resistant and designed to withstand exposure to the elements.
High-Temperature Environments: Use cables with high-temperature-resistant insulation materials like silicone or PTFE for systems exposed to heat, such as oven controls or machinery.
Wet or Damp Locations: In wet environments, such as outdoor lighting or submersible pumps, choose cables with waterproof or water-resistant coatings.
Using cables not suited for the environment can lead to premature wear, failure, or safety hazards. Always verify the environmental ratings of the wire or cable to ensure long-term performance and reliability.
To ensure quality and safety, choose wires and cables that are certified by recognized standards organizations. Some key certifications include:
UL (Underwriters Laboratories): Ensures that the cable meets safety standards and is safe for use in residential and commercial settings.
IEC (International Electrotechnical Commission): Provides international standards for electrical cables, ensuring compliance with global safety and performance criteria.
RoHS (Restriction of Hazardous Substances): Indicates that the wire or cable is free from harmful substances like lead, cadmium, and mercury.
Certified cables have undergone rigorous testing to meet safety and quality standards. Always check for certification labels to ensure you're purchasing a reliable, safe product.
Choosing the right wire or cable involves considering several factors, including the type, voltage rating, gauge, insulation material, environmental conditions, and certifications. By carefully evaluating each of these aspects, you can select the best wire or cable for your application, ensuring safety, efficiency, and durability. Whether you’re working on a small DIY project or a large industrial installation, understanding these key factors will help you make a well-informed decision and ensure the success of your electrical system.
