Power cables are essential components in electrical systems, providing the necessary connection to transmit electrical energy from one point to another. They come in various types, each designed for specific applications, environments, and performance requirements. In this comprehensive guide, we will explore the different types of power cables, their characteristics, and their ideal uses to help you choose the right cable for your needs.
Low-voltage power cables are designed to handle electrical currents at relatively low voltages, typically below 1,000 volts. These cables are commonly used in residential, commercial, and light industrial applications. The insulation of low-voltage cables is designed to protect the conductor from damage and prevent electrical shorts.
Common Types:
Single-core cables: Used in basic electrical installations, often for lighting circuits or appliances.
Multi-core cables: These cables have multiple conductors within a single jacket and are ideal for complex installations requiring more than one connection.
Applications: Low-voltage cables are typically used for power distribution in homes, offices, and light industrial buildings, as well as for outdoor installations like lighting systems.

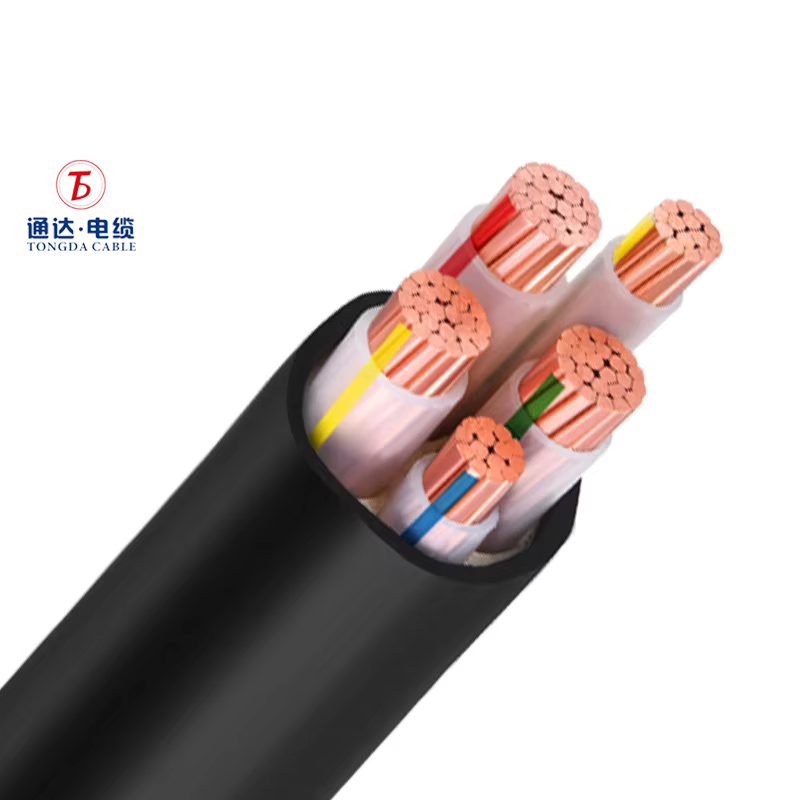

XLPE Insulated and PVC Sheated Multi-core Power Cable
Medium-voltage power cables are used in applications requiring higher voltage ratings, generally between 1,000 volts and 35,000 volts. These cables are built to handle more demanding electrical loads and are used in industrial, commercial, and utility power distribution systems.
Construction: Medium-voltage cables typically feature enhanced insulation and shielding to handle the higher voltage and ensure safety during operation. They are usually made of copper or aluminum conductors, with cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR) insulation.
Applications: These cables are ideal for use in power plants, substation equipment, industrial machinery, and public utilities.

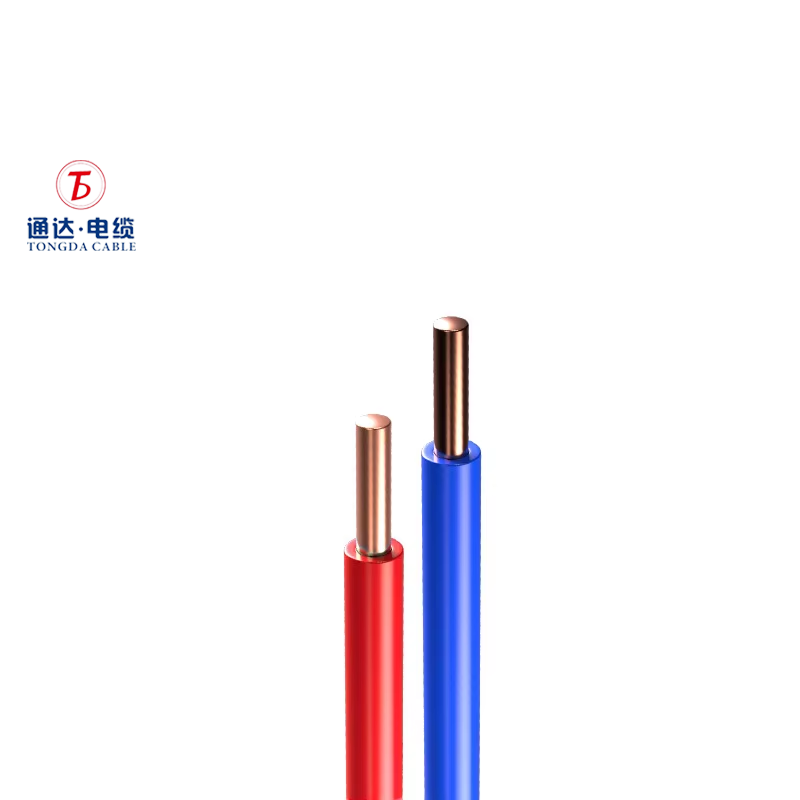

PVC Insulated Single-Core Non-sheathed Cable (BV)
High-voltage power cables are designed to transmit electricity at voltages exceeding 35,000 volts. These cables are typically used for long-distance power transmission and are a crucial part of the electrical grid. High-voltage cables are engineered with advanced insulation and materials to prevent electrical leakage and ensure safe operation.
Construction: High-voltage cables often include multiple layers of insulation, including semiconductive layers to prevent corona discharge. These cables are typically made of aluminum or copper conductors, with insulation materials such as XLPE, EPR, or oil-impregnated paper.
Applications: High-voltage power cables are primarily used for transmitting electricity from power stations to substations and across large distances in high-voltage networks.
Armored power cables are designed for applications where physical protection is necessary. They are equipped with a layer of metal, typically steel or aluminum, to protect the inner conductors from external damage, such as mechanical stress, abrasion, and rodent interference.
Construction: These cables feature a metallic armoring layer that provides additional strength. The outer sheath is typically made of durable materials like PVC or polyethylene to protect against environmental elements.
Applications: Armored cables are often used in underground installations, industrial environments, and areas where the cable may be exposed to harsh physical conditions.

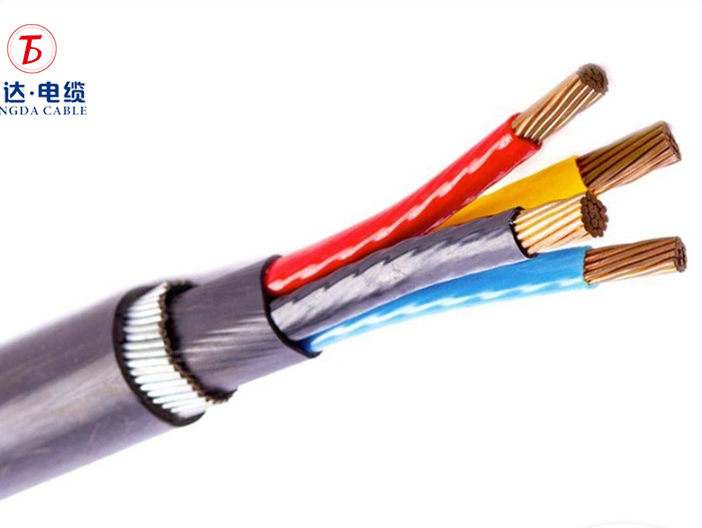

Multi Core XLPE Insulated Steel Wire Armored LSZH Sheated Power Cable
Flexible power cables are designed to be bendable and adaptable to a variety of installation requirements. They are ideal for applications where the cable may need to be moved or adjusted frequently, such as in machinery, power tools, and portable devices.
Construction: Flexible cables are made with multiple fine copper strands that allow for greater flexibility. The insulation is typically made from rubber or thermoplastic elastomer (TPE) to enhance flexibility and durability.
Applications: These cables are used in portable power equipment, construction sites, and temporary installations where flexibility and mobility are key requirements.
Coaxial cables are specialized cables that carry electrical power and signals with minimal interference. They consist of a central conductor, an insulating layer, a shielding layer, and an outer insulating sheath. The shielding helps prevent electromagnetic interference, ensuring clear and reliable signal transmission.
Construction: Coaxial cables have a unique design with concentric layers, including a metal shielding that prevents signal loss and external interference.
Applications: Coaxial cables are commonly used in telecommunications, broadcasting, and video signal transmission. They are also used for low-power electrical connections in communication systems.
Submarine power cables are used to transmit electrical power underwater, often for offshore wind farms, undersea oil and gas platforms, or intercontinental power transmission. These cables are specially designed to withstand harsh underwater environments, including water pressure, corrosion, and marine life interference.
Construction: Submarine cables are typically made of copper or aluminum conductors, with multiple layers of protection, including steel armor and special insulating materials like cross-linked polyethylene (XLPE) for added durability under water.
Applications: Submarine power cables are used in offshore energy installations, undersea power transmission, and other underwater applications where traditional cables would not be suitable.
Solar power cables are designed for use in photovoltaic (PV) systems, connecting solar panels to inverters and batteries. These cables are built to handle the outdoor elements and provide efficient power transmission for renewable energy systems.
Construction: Solar cables are typically made from copper conductors with UV-resistant and weatherproof insulation, allowing them to withstand harsh environmental conditions.
Applications: These cables are used in solar power installations, including residential, commercial, and large-scale solar farms. They are designed for use in both DC and AC circuits within solar power systems.
Underground power cables are designed for use in underground installations, offering protection against environmental elements, physical damage, and electromagnetic interference. These cables are often installed in urban environments, where above-ground power lines are not feasible or desirable.
Construction: Underground cables are built with heavy-duty insulation and armoring, often with an additional layer of protection to ensure safety and performance. They may be shielded or unshielded, depending on the installation requirements.
Applications: Underground power cables are typically used in urban infrastructure, including power distribution networks, as well as for residential and commercial installations that require buried cables.
Choosing the right type of power cable is crucial for ensuring the safety, efficiency, and longevity of electrical systems. Whether you're installing a new power grid, connecting solar panels, or simply replacing old cables, understanding the different types of power cables and their respective applications will help you make an informed decision. Always consider factors such as voltage, environmental conditions, flexibility, and protection requirements before purchasing power cables to ensure optimal performance and safety.
1. What is the difference between high-voltage and low-voltage power cables?
High-voltage cables are used for long-distance power transmission and can handle much higher electrical currents than low-voltage cables, which are typically used for residential or commercial power distribution.
2. Why are armored power cables important?
Armored power cables provide extra protection against physical damage, making them ideal for installations in environments where the cables may be exposed to mechanical stress, rodents, or other hazards.
3. Can solar power cables be used for general electrical applications?
Solar power cables are specifically designed to withstand outdoor conditions and UV radiation, making them ideal for solar panel systems. They should not be used for general electrical applications unless they meet the necessary standards for those applications.
4. How do I choose the correct gauge for my power cable?
The gauge of a power cable depends on the amount of current it needs to carry. For higher currents, thicker cables with lower gauge numbers are needed, while lighter applications require thinner cables with higher gauge numbers.
5. Are there power cables suitable for outdoor use?
Yes, there are power cables specifically designed for outdoor use, with weatherproof and UV-resistant insulation to protect against the elements. Make sure to select the right type based on your outdoor installation needs.
