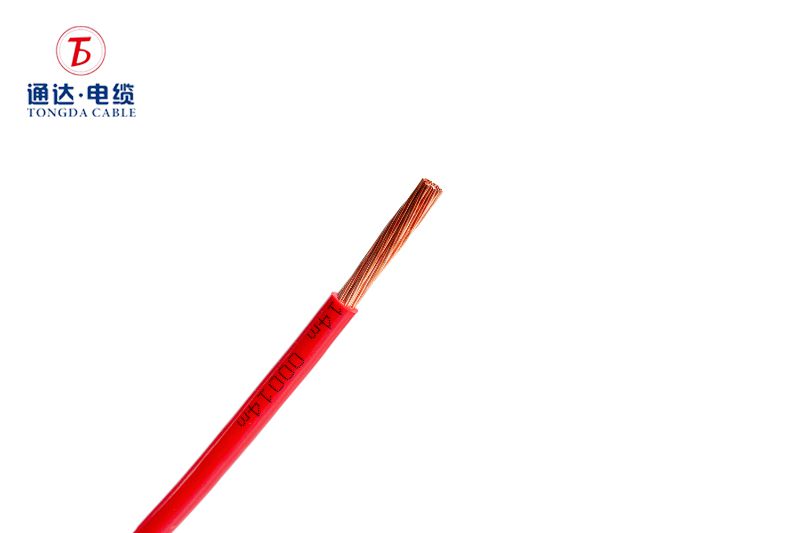

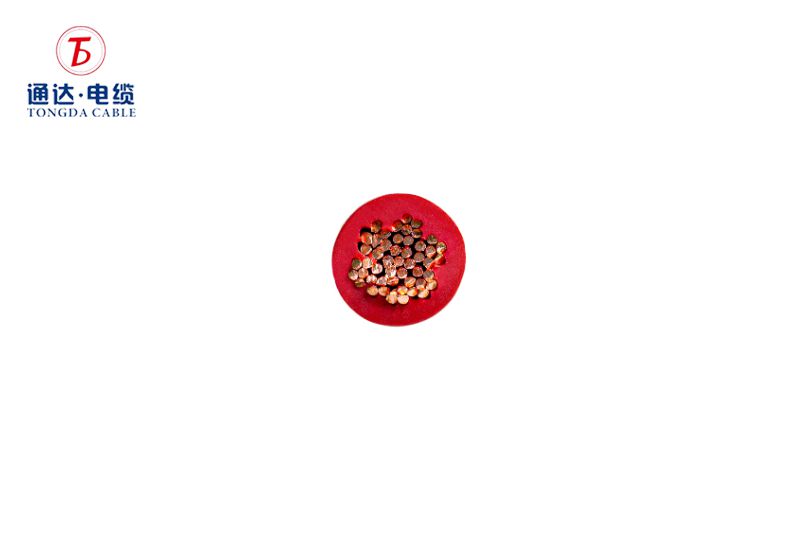

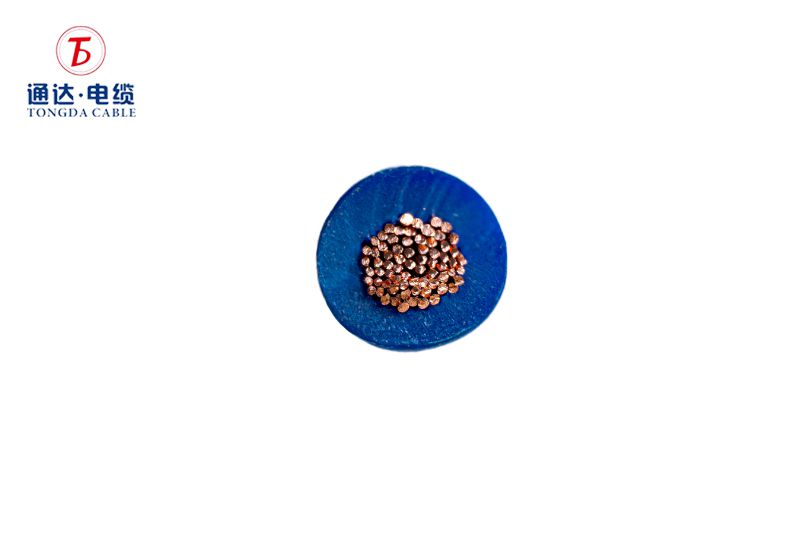

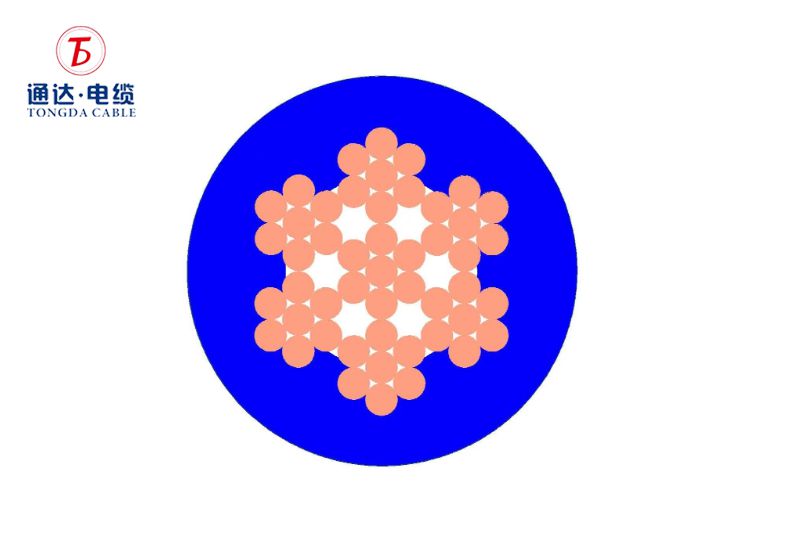

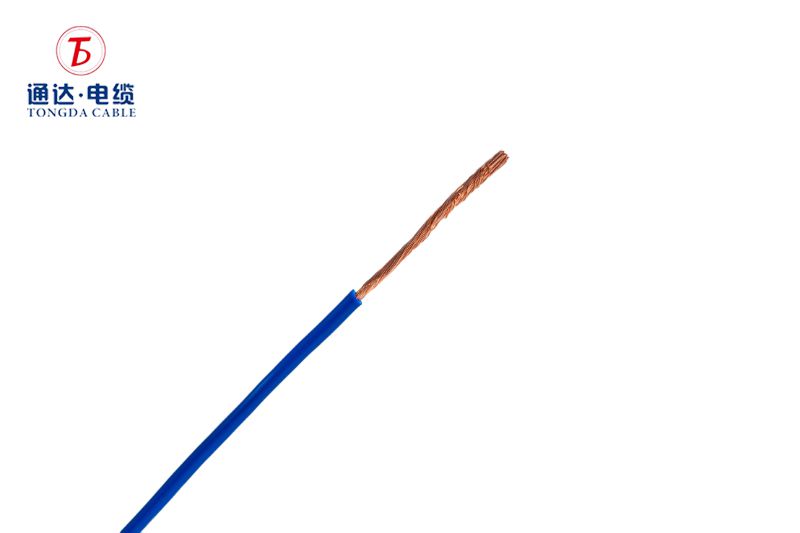

PVC insulated flexible cable (RV/BVR)

Application: Primarily used as flexible panel wire and is available in a wide range of different colors for this purpose. Designed for internal equipment wiring in switch control, relay and instrumentation panels of power switchgear, and for purposes such as internal connectors in rectifier equipment, motor starters and controllers, this flexible cable can be installed in open air, in conduits, or in trunking.

Voltage Rating: 300/500V&450/750V

Temperature Rating: -15℃to+70℃

Min. laying temperature: 0℃

Standard: IEC 60227

Insulation Color: red, blue, green, yellow, black, yellow/green, brown

Inquire Now

Download

Product Parameter

Item	Contents
Application	Relay and instrument panels of power switch-gear and such purpose as internal connections in rectifier equipment
Voltage Rating	300/500V, 450/750V
Temperature Rating	﹣15℃to﹢70℃
Conductor Material	Copper
Insulation Material	PVC (Polyvinyl Chloride)
Insulation Colour	Red, Yellow, Blue, Green, Black, Yellow/Green, Brown, Gray, White
Standard	IEC 60227
Brand Name	TongDa
Place of Origin	Guangdong, China
